Sale!

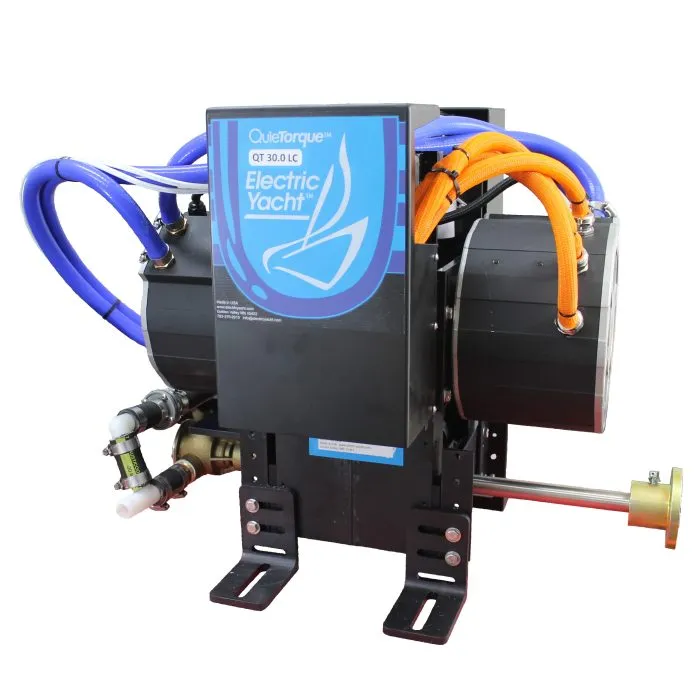

QuietTorque™ 30.0 LC Electric Motor

$15,495.00

The QuietTorque 30.0 LC provides up to 30kW electric propulsion. 48Vdc plug-n-play system for boats to 45ft. 28,000lbs. Replaces diesel engines up to 60hp.

Motors are made to order and have a 2-4 week lead time.

  • Choose Your Display

    Choose Your Throttle

    Choose Your Charge Sensor

    Select Your Battery or Batteries

    NOTE: You can shop all our batteries here.

    Choose Your Charger

Pay a deposit of $1,000.00 per item

Overview

The QuietTorque™ 30.0LC is recommended for boats up to 45’ (LOA) and 28,000lbs displacement.

Typically replacing diesel engines up to 75hp.  Typical battery size is 600-800Ah.

Specifications

Motor type                         2 PMAC Brushless   (Liquid Cooled)

Voltage                                48Vdc

Max Input Power             30kW

Cont. Input Power           25kW

Weight                                 200 lbs (68 kg)

Frame                                   Anodized Aluminum

Shaft                                     Stainless Steel

Additional Information

Gallery

Sale!

Standard Features

Motor Mounts:                    Adjustable Mounts to current engine stringers

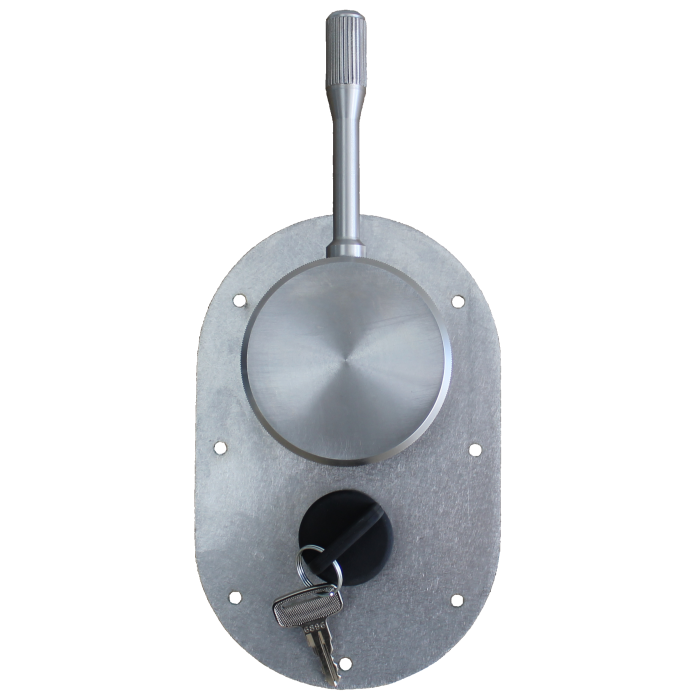

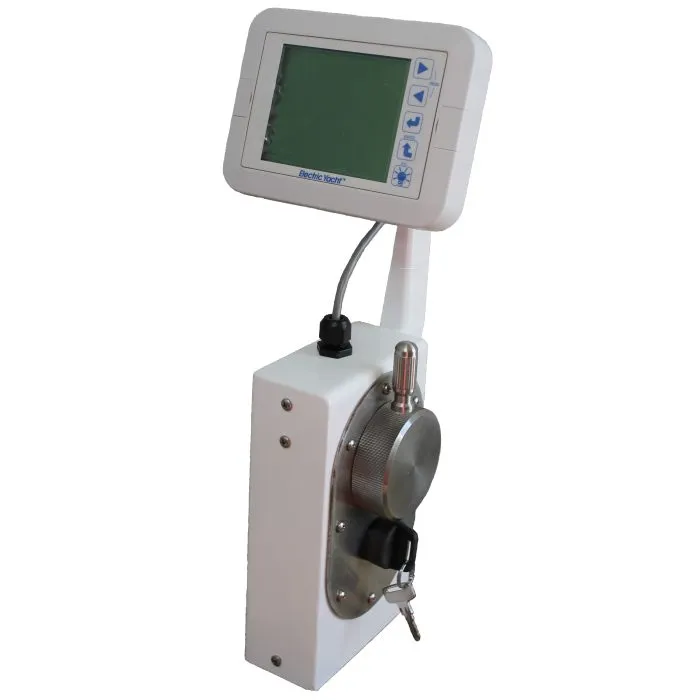

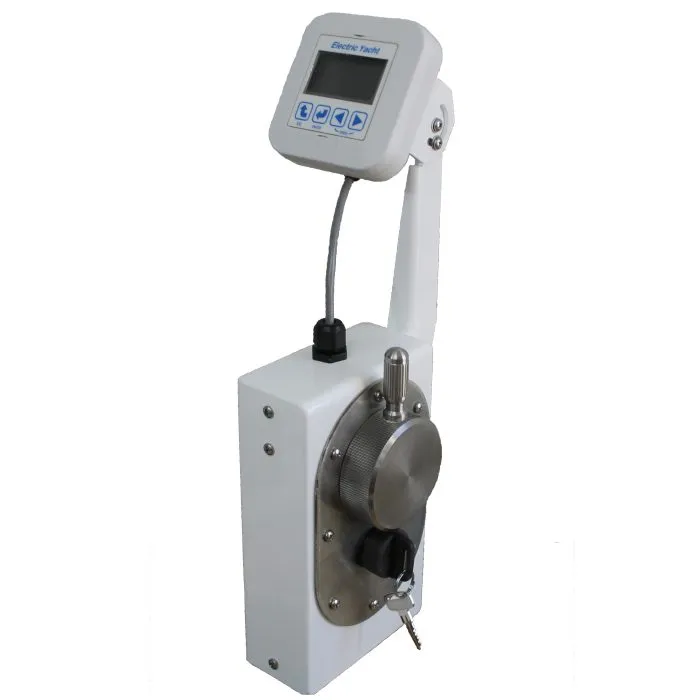

Throttle:                                Anodized Al waterproof throttle with key & neutral lock

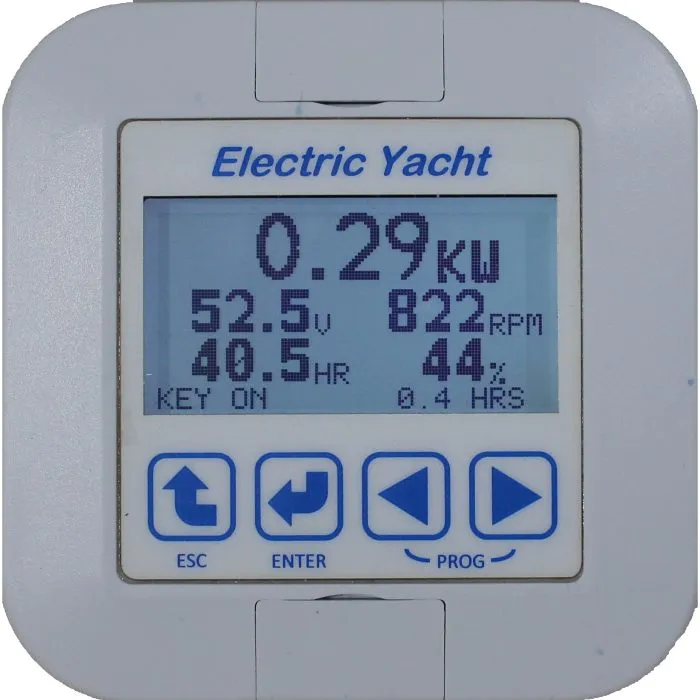

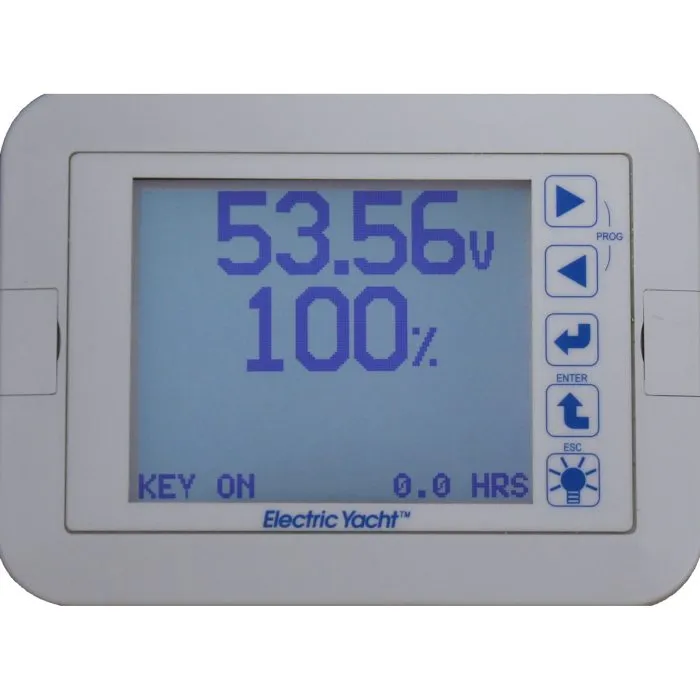

System Monitor:                  Programmable digital display

  • State of Charge (SOC)
  • Voltage, Current, Power and RPM
  • Time to Discharge (TTD)
  • Programmable regeneration and max power
  • Programmable RH or LH propeller rotation
  • Programmable for flooded, AGM and LiFePO4 battery type and size

Shaft coupler:                      4” flange (Hurth/Borg Warner)

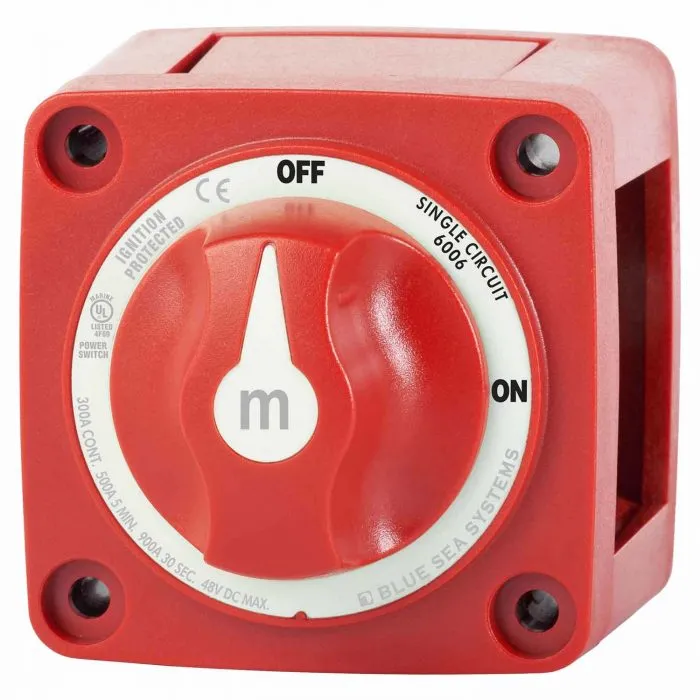

Power Switch:                      Two position Blue Sea battery switch

Relay:                                     500A TE Connectivity vacuum relay

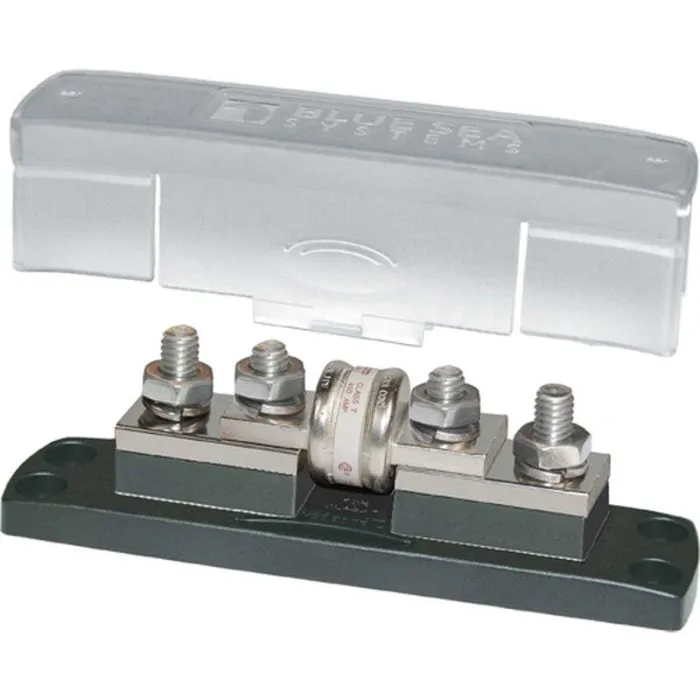

Fuse:                                      Class-T fuse & holder

The QuietTorque™ 30.0LC is a complete and includes everything you will need except batteries, battery cables and charger. Contact us directly or through one of our dealers and we will help you design a complete system to meet your particular needs.
